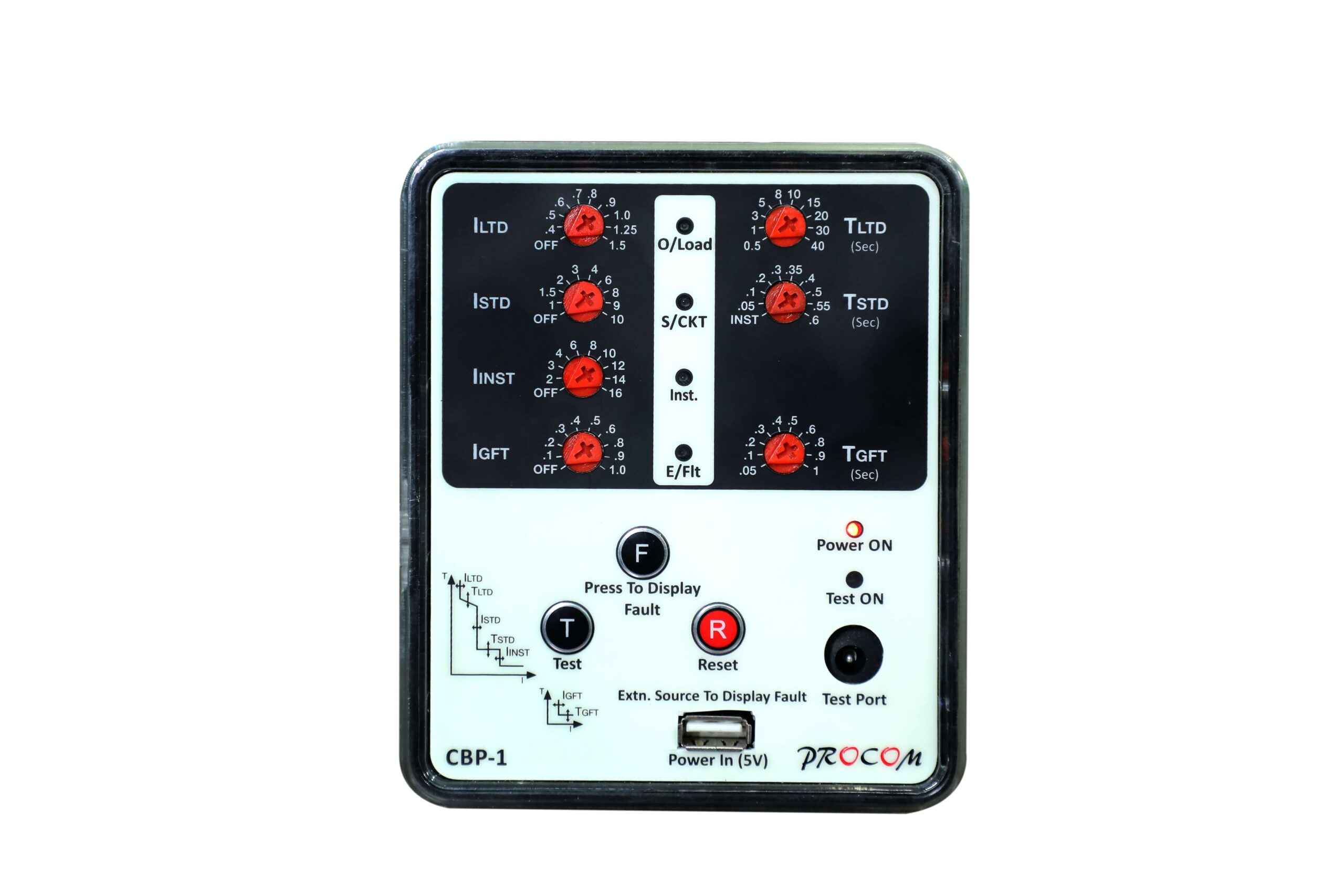

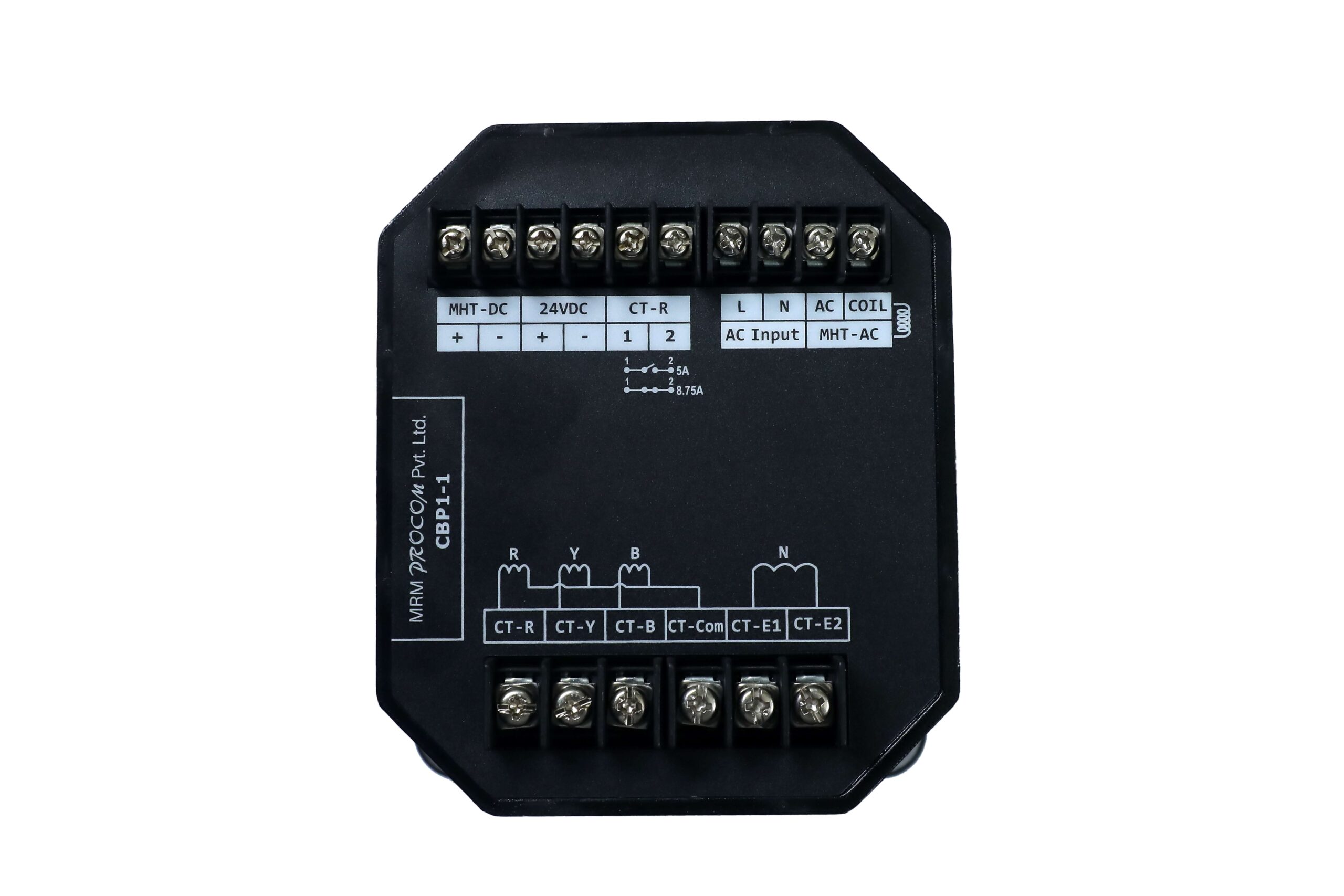

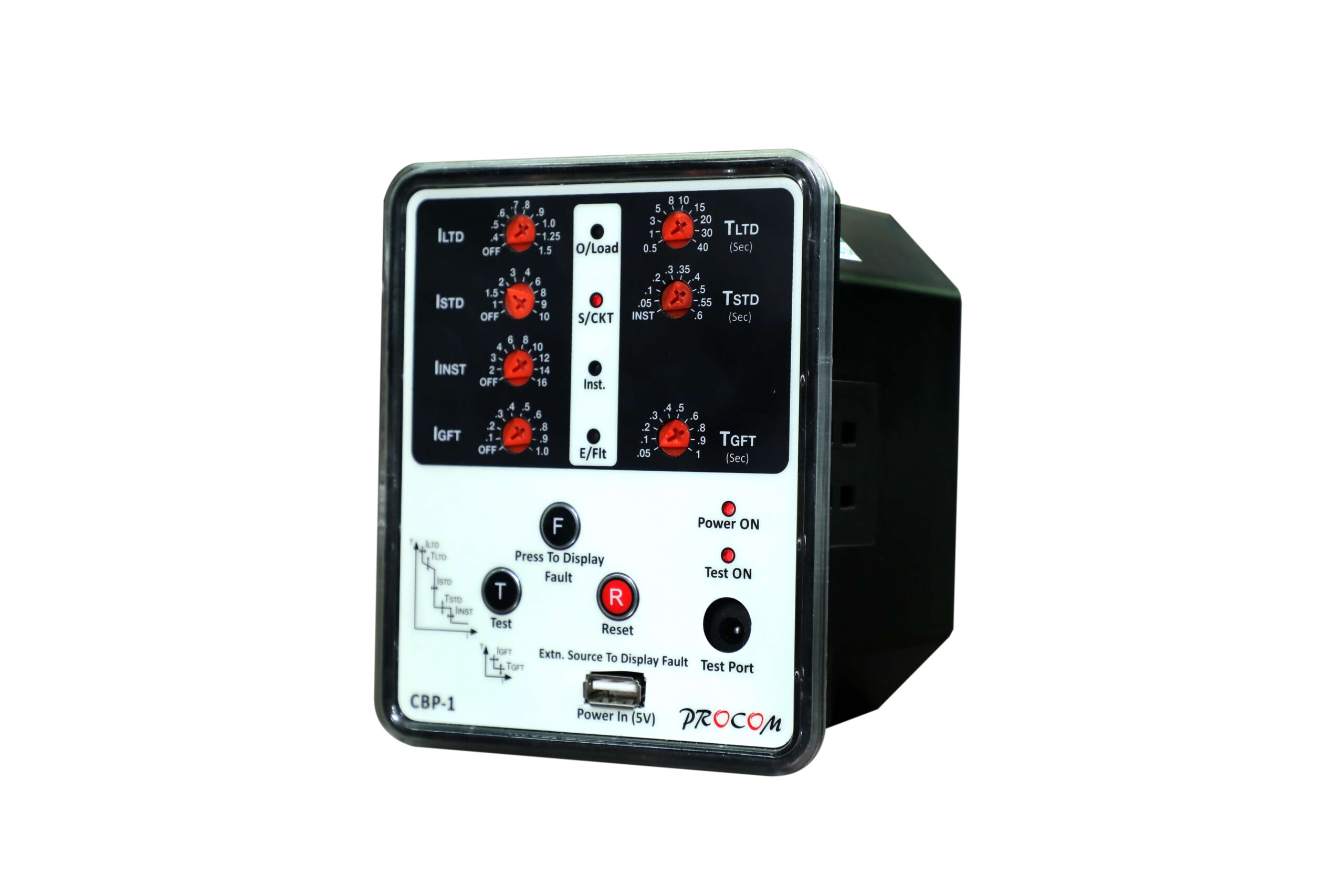

CBP1-121
CBP-1 Is an micro processer based numerical self powered circuit breaker release
relay fast Fourier transformation is performed
CBP-1 provides protection for
1 (LTD) over current protection with long time delay setting with independent timer
2 (STD) short circuit protection with long time delay setting with independent timer
3 Ground fault protection with independent timer
4 fault protection
View/Download Catalogue
| Specifications | |
|---|---|
| Overload function (LTD) | LTD Current OFF, 40% to 150% of ICT. LTD Time 0.5 sec to 40 sec. |
| Short Circuit function (STD) | STD Current OFF, 100% to 1000% of ICT. STD Time 50ms to 600ms. |
| Instantaneous function (INST) | INST Current OFF, 200% to 1600% ICT |
| Ground fault function (GFT) | GFT Current OFF, 10% to 100% ICT GFT Time 50ms to 1000ms. |
